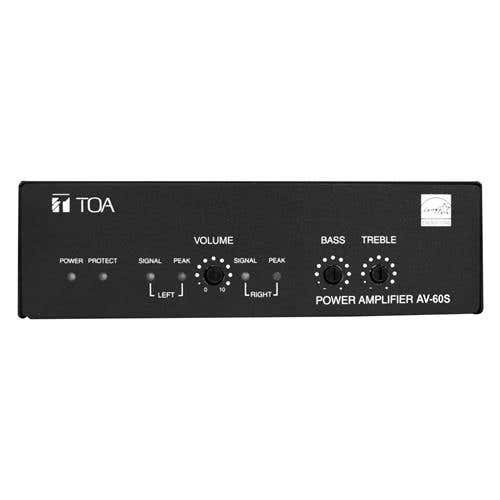

TOA AV-60S-AM Single Channe Micro Amplifier (AV-60S-AMD00)
Details
The TOA AV-60S-AM is a single channel digital amplifier for speech and general announcement, this unit is well suited to use in board room, conference room and AV presentation room.
This compact amplifier is equipped switching power supply circuit inside, and is Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for the installation into air handling space without external AC adaptor. The rated output power is 60W at 70V or 4 Ohms.
| Specifications | |
|---|---|
| Power Source | 100V-240V AC, 50Hz/60Hz |
| Rated Output | 60W @ 4 Ohms, 60W @ 70 V |
| Power Consumption Rated Output | Less than 85 W @ 70 V, Less than 110 W @ 4 Ohms |
| Idle Power Consumption | Less than 10 W @ 70 V, Less than 7 W @ 4 Ohms |
| Power Consumption in Power Saving Mode | Less than 1 W |
| Frequency Response | 4 Ohms mode: 20Hz to 20KHz ±3dB 70V mode: 60Hz to 20KHz ±3dB (Line1 input with transformer: 100Hz to 20KHz) |
| Total Harmonic Distortion | Less than 0.15% |
| Input | Line 1: -10/-20dB* (selectable), 10 K ohms, transformer-balanced, removable terminal block Line 2: -10/-20dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jack Line 3: -10/-20dB* (selectable), 10 K ohms, transformer isolated unbalanced, RCA jacks |
| Output | Speaker output, removable terminal block (2P) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ± 10dB at 10 kHz |
| Controls | Master volume control Remote volume control Bass tone control, Treble tone control 70 V / 4 Ohm switch Input sensitivity switches (Line 1, Line 2, Line 3) |
| Indicator | Power LED, Protection LED, Signal LED, Peak LED |
| Other Feature | Automatic Level Control, Thermal/Over-current protection, Automatic power save function (EnergyStar rated) |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Case | Black metal case |
| UL Standards | UL2043 |
More Information
| Brand | TOA |
|---|---|
| Amplifier Power | 60 Watts @ 4 Ohms |
| Video Upscaling | Not Applicable |
| 3D Capable | Not Applicable |
| Dolby Sound Format Compatibility | None |
| DTS Sound Format Compatibility | None |
| HDMI Input(s) | None |
| HDMI Output(s) | None |
| Composite Video Input(s) | None |
| Composite Video Output(s) | None |
| Component Video Input(s) | None |
| Component Video Output(s) | None |
| Analog Audio Input(s) (RCA Inputs) | 1 |
| Analog Audio Output(s) (RCA Outputs) | None |
| Pre-amp Input / Phono Input | None |
| Pre-amp Output(s) | None |
| Optical Digital Audio Input(s) | None |
| Coaxial Digital Audio Input(s) | None |
| Coaxial Digital Audio Output(s) | None |
| iPod Connectivity | None |
| Headphone / Line Output(s) | None |
| USB Port(s) | None |
| Ethernet Port(s) | None |
| Radio Tuner | None |
| Streaming Service Compatibility / Connectivity | None |
| Multi-Zone | No |
| Wi-Fi / Bluetooth Connectivity | None |
| HDMI-CEC | Not Applicable |
| IR Extender Port | None |
| ARC (HDMI Audio Return Channel) | Not Applicable |
| 12V Trigger | None |
| DLNA Certified | None |
| HDCP Compliance | Not Applicable |
| Product Labour Warranty | 5 Year Limited |
| Product Parts Warranty | 5 Year Limited |
| Width (in.) | 5.9 |
| Height (in.) | 1.73 |
| Depth (in.) | 6.14 |
| Weight (lbs) | 2.5 |
