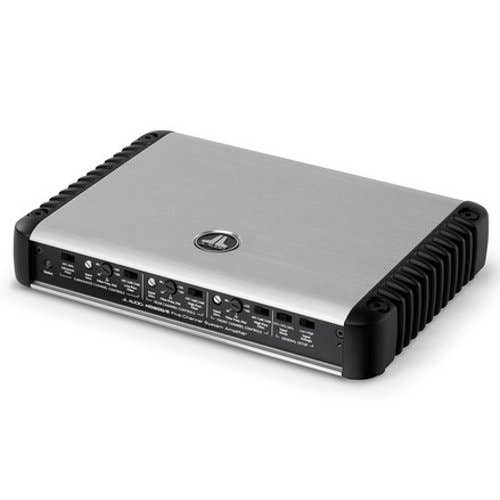

JL Audio 5-Channel Class D System Amplifier (JLHD9005)

Model
JLHD9005
Manufacturer
JLAMPHD900/5
UPC
699440982238
Special Price $2,149.90 Regular Price $2,149.95
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal. The HD900/5 will comfortably drive a complete high-performance system!
Details
Thanks to its ability to act as a "one-box solution", the HD900/5 is ideal for installations where space is at a premium and sound quality is the paramount goal. While extremely compact, this amazing amplifier will comfortably drive a complete high-performance car audio system: that is, four satellite speaker systems and a subwoofer system... with a very serious 900 watts of power! Using our Single Cycle Control switching design and R.I.P.S. technology, the HD900/5 delivers 100 W x 4 to its four main channels, plus a very meaty 500 W to its subwoofer channel. Thanks to R.I.P.S., high power can be delivered over a wide range of load impedances, while the tight power supply regulation keeps distortion down, maximizing sound quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
More Information
More Information
BrandJL Audio
Total Max Power (Car Amplifiers)900 Watts
# of Channels5
1 ohm Power OutputN/A
2 ohm Power Output75W x4 RMS
4 ohm Power Output100W x4 RMS
Bass Boost (Car Amplifiers)Not Applicable
Bridgeable (Amplifiers)Yes
Bridged Power at 4 ohms (Amplifiers)150W x2 RMS
External Bass Control Capable (Car Amplifiers)Yes
Fuse Rating60A
High Pass Filter (Car Amplifiers)Yes
Low Pass Filter (Car Amplifiers)Yes
MOS-FET Switching (Car Amplifiers)Not Applicable
Overload Protection (Car Amplifiers)Yes
Protection Indicator (Car Amplifiers)Yes
RCA Inputs (# Of Pairs) (Car Amplifiers)2
RCA Outputs (# Of Pairs) (Car Amplifiers)1
Screw Type Terminals (Car Amplifiers)No
Signal-to-Noise Ratio≥108.5 dB
Tri-Mode Capable (Car Amplifiers)Yes
Product Labour Warranty1 Year
Product Parts Warranty1 Year
Width (in.)10.74
Height (in.)1.93
Depth (in.)8.29
Weight (lbs)6.85
