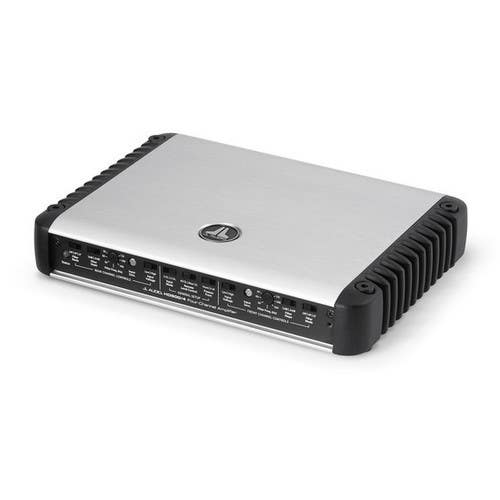

JL Audio 4 Channel Class D Full Range Amplifier (JLHD6004)

Model
JLHD6004
Manufacturer
JLAMPHD600/4
UPC
699440982214
Special Price $1,648.00 Regular Price $1,649.95
This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2.
Details
jlhd6004 4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality. When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price. It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system. This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.
More Information
More Information
BrandJL Audio
Total Max Power (Car Amplifiers)600 Watts
# of Channels4
1 ohm Power Output150W x4 RMS
2 ohm Power Output150W x4 RMS
4 ohm Power Output150W x4 RMS
Bass Boost (Car Amplifiers)Not Applicable
Bridgeable (Amplifiers)Yes
Bridged Power at 2 ohms (Amplifiers)Yes
Bridged Power at 4 ohms (Amplifiers)300W x2 RMS
External Bass Control Capable (Car Amplifiers)Yes
Fuse Rating50A
High Pass Filter (Car Amplifiers)Yes
Input Voltage (Car Amplifiers)14.4V
Low Pass Filter (Car Amplifiers)Yes
MOS-FET Switching (Car Amplifiers)Not Applicable
Overload Protection (Car Amplifiers)Yes
Protection Indicator (Car Amplifiers)Yes
RCA Inputs (# Of Pairs) (Car Amplifiers)2
RCA Outputs (# Of Pairs) (Car Amplifiers)1
Screw Type Terminals (Car Amplifiers)No
Signal-to-Noise Ratio≥110 dB**
Tri-Mode Capable (Car Amplifiers)Yes
Product Labour Warranty1 Year
Product Parts Warranty1 Year
Width (in.)10.74
Height (in.)1.93
Depth (in.)6.6
Weight (lbs)10
