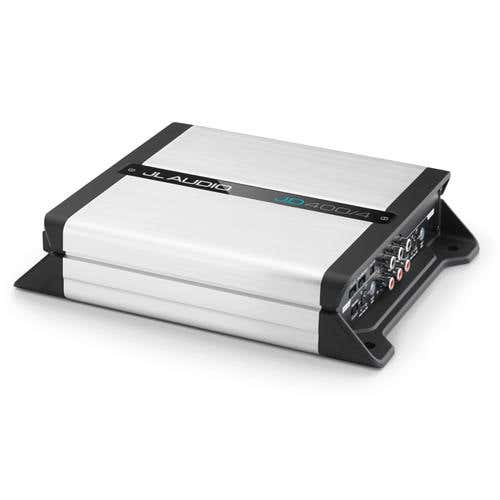

JL Audio 4 Channel 400 Watts at 2 Ohms Class D Full-Range Amplifier (JD4004)

Model
JD4004
Manufacturer
JLAMPJD400/4
UPC
699440983617
$429.95
Utilizing the exclusive NexD high-speed switching technologies, this amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. It churns out 100 watts of audio from each of its four channels.
Details

Utilizing the exclusive NexD high-speed switching technologies, the JD400/4 amplifier is engineered to deliver loads of clean power, with excellent efficiency and low distortion. This little guy churns out 100 watts of audio from each of its four channels into 2 ohms (14.4V, 1% THD) and is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a whopping 200W x 2 into 4 ohms.

The JD400/4’s controls can be found on the input panel of the amplifier, with all speaker and power connections located along the opposite end of the extruded aluminum chassis. Signal processing features include high or low-pass 12 dB / octave filters (defeatable) for each channel pair, with continuously variable frequency selection from 50-500 Hz, and dual-range, differential-balanced inputs capable of accepting line-level or speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard equipment.

Onboard LED-clipping indicators are also included surrounding each input sensitivity control. This convenient feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. You will also find a set of buffered, pass-through preamp outputs on-board, so you can pass signals to another amplifier.

More Information
More Information
BrandJL Audio
Total Max Power (Car Amplifiers)100W x 4
# of Channels4
2 ohm Power Output100W x4 RMS
4 ohm Power Output75W x4 RMS
Bridgeable (Amplifiers)Yes
Bridged Power at 4 ohms (Amplifiers)200W x2 RMS
Fuse Rating40A
High Pass Filter (Car Amplifiers)Yes
Input Voltage (Car Amplifiers)12.5 V - 14.4 V
Low Pass Filter (Car Amplifiers)Yes
RCA Outputs (# Of Pairs) (Car Amplifiers)1
Signal-to-Noise Ratio≥104 dB
Speaker Lvl Inputs (Car Amplifiers)RCA
Product Labour Warranty1 Year Limited
Product Parts Warranty1 Year Limited
Width (in.)9.5
Height (in.)2.1
Depth (in.)7.5
Weight (lbs)10
