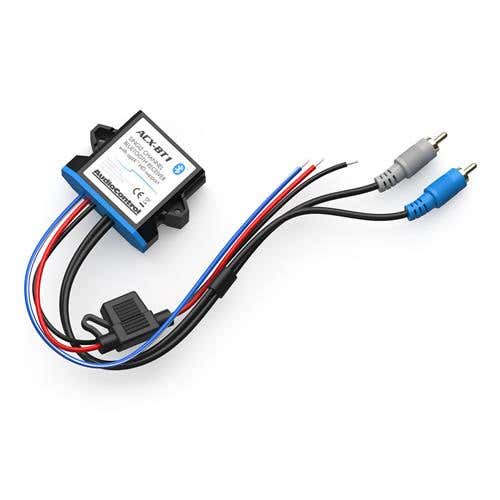

Audio Control All - Weather Bluetooth Streamer (ACXBT1)

The AudioControl ACXBT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACXBT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance. The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more. Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.

Product Highlights

• High Definition Low-Latency Audio Streaming
• aptXTM HD Support
• 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
• IPX5 rated enclosure
• Built in fuse

Specifications

Bluetooth

• Version: 4.1
• aptX HD Compatible

Output

• Dual Line Level RCA
• Nominal Output Level: 1.5 Vrms

Performance

• Signal to Noise Ratio: 95 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)

General

• Current Draw: 35 mA
• Fuse Rating: 2 A
