Details
With the R-Series speakers' innovative material that delivers more output, the speakers produce dependable performance for a loud and fun experience.
TURN IT UP WITHOUT TURNING DOWN SOUND QUALITY
If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.
MORE OUTPUT FOR MORE FUN
The woofers have a large, 35-millimeter (mm) voice coil which allows for more coil windings to fit in the gap. This results in greater heat dissipation and increased power handling, for superior control and output.
The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. These coaxial models use a crossover with an in-line, passive design and reduced footprint, which contributes to easier installation.
EXCLUSIVE CONE TECHNOLOGY
The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom-formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback.
BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE
The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force.

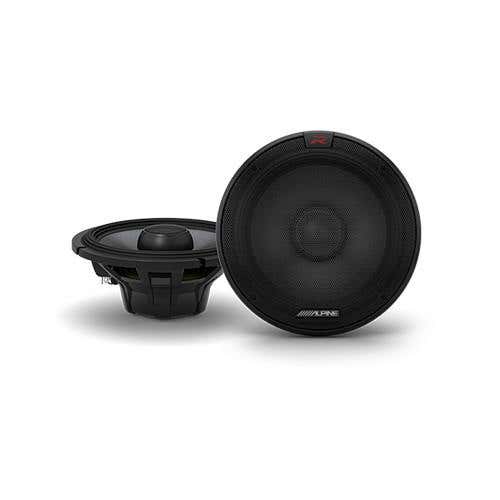

Alpine R-Series 6.5" Highlights:
- 100 Watts RMS
- 300 Watts Peak
- Nominal Impedance: 4ohm
- Ultra Smooth CFRP 1" Silk Dome Tweeter
- H.A.M.R. Surround (Patent Pending)
- Multi-Layer Hybrid Fiber Cone
- Large Square Wire Dual-Layer Voice Coil
- High-performance Linear Drive Motor
More Information
Brand | Alpine |
---|---|
Speaker Size (Car Speakers) | 6.5" |
Speaker Type | 2-way Coaxial |
Power Handling (Car Speakers) | 300W Peak / 100W RMS |
Frequency Response (Car Speakers) | 65Hz-40kHz |
Impedance (Car Speakers) | 4 Ω |
Tweeter Size (Car Speakers) | 1 inch Silk Dome Tweeter |
Super Tweeter Size (Car Speakers) | Not Applicable |
Sensitivity (Car Speakers) | ≥88 dB |
Woofer Size (Car Speakers) | 6-1/2" |
Product Labour Warranty | 1 Year Limited |
Product Parts Warranty | 1 Year Limited |
What's Included
• Pair of 2-Way Speakers
• 2 Grilles
• Grille Clips
• Screws
• Speed Clips
