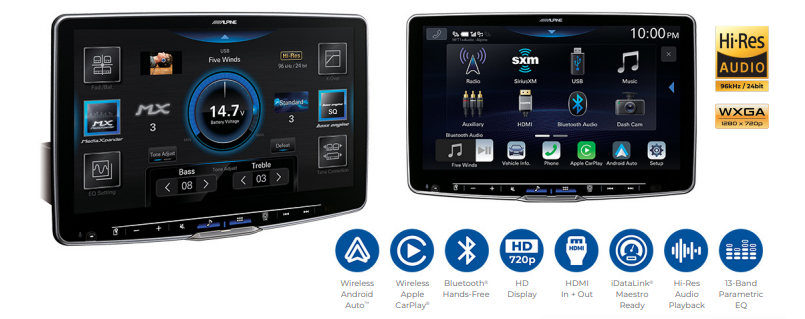

iLX-F511 Alpine Halo11 Digital Multimedia Receiver with 11-inch HD Touchscreen Display

Next-Gen Dash Technology – The Next-Gen Alpine Halo9 features Apple CarPlay®, Android Auto™, and built-in Bluetooth® hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio®, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM® for even more choices in entertainment (tuner and subscription sold separately).

Hi-Res Audio – Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Amazon Music HD, and more. The Alpine Halo11 plays Hi-Res music at it’s intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection (requires LDAC compatible device).

MAIN FEATURES

Alpine Halo Design
Adjustable Floating Style Display with 1-DIN Chassis
Hi-Res Audio Playback (96kHz / 24bit)
Apple Carplay® (Wired & Wireless)
Android Auto™ (Wired & Wireless)
Bluetooth® Hands-Free
SiriusXM-Ready®
Built-in HD Radio®
iDatalink® Maestro Compatible
Alpine DVR-C320R Dash Cam Compatible
Navigation Compatible with KTX-NS01
Media Xpander®

TECH SPECS

Screen Size: 11”
Screen Resolution: WXGA 1280 x 720px
AUX Input: 1
HDMI Input: 1
HDMI Output: 1
Camera Inputs: 2 Direct (1 Rear & 1 Front, Side, or Other)
Dash Cam Input: 1 (Alpine DVR-C320R)
USB Inputs: 2 (1 Data, 1 Charge Only Port)
4V Pre-Outs: 3
Built-in Amplifier: 18W RMS x 4
EQ: 13-Band Parametric (per channel)
DAC: 24 Bit
Crossover: High Pass / Low Pass
Audio Playback: AAC, APE, FLAC, MP3, WMA, WAV
Video Playback: AVC, FLV, H.263, H.264, MP4, MPEG-1,
MPEG-2, MPEG-4, MKV, MOV

More Information

More Information
Brand	Alpine
Plays MP3 audio files	Yes
Plays WMA audio files	Yes
USB Port(s)	2 - (Rear)
Auxiliary Input (Auto & Marine Head Units)	1 - (Rear)
Touchscreen	Capacitive
Bluetooth Capability	Bluetooth 4.2
Plays FLAC audio files	Yes
Plays AAC audio files	Yes
Height (in.)	1.985
Weight (lbs)	5.3
Width (in.)	7.005
Depth (in.)	6.575
Product Labour Warranty	1 Year Limited
Product Parts Warranty	1 Year Limited

What's Included

11" Touchscreen monitor
Source unit
Wiring harness (15A fuse)
Preout harness
iDatalink/Driver Recorder/Front Camera harness
Camera input adapter harness
Mic/SWC harness
Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
Surface-mount bracket
Two-sided tape
GPS antenna (attached 8' cable with proprietary connector)
Self-adhesive mounting pad
3 Self-adhesive cable clamps
Power-plate
2 Rear covers
HDMI connector clamp
4 Pan-head ISO-screws (M5x8mm)
4 Counter-sunk ISO-screws (M5x8mm)
3 Display screws (M5x8mm)
2 Hinge screws (M3x4mm)
2 Rear cover screws (M2.6x6mm)
4 Rectangle self-adhesive sheets
4 Square self-adhesive sheets
2 Round self-adhesive sheets
2 Semi-oval self-adhesive sheets
Quick Reference Guide
Online Registration Information
Online Detailed Manual Card
